Sending annotations as Sanction media clips

TextMap® allows you to send a single annotation, or bulk send all annotations that contains video to the LexisNexis® Sanction® application as media clips.



hmtoggle_plus1To send an annotation to Sanction as a media clip
1.Open a case in Sanction® 3.5 or later.
2.In the Transcripts pane, select a transcript from the list that has both annotations and video.



ac_tip_icon

The video icon xm_transcript_video indicates a transcript with video.

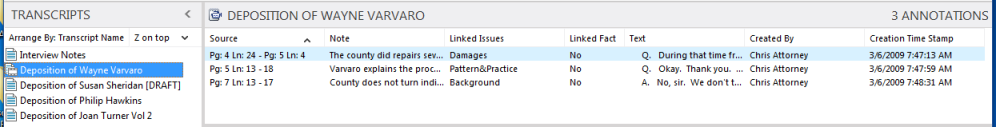

Transcript list

3.Click on the annotation to be sent to Sanction.
4.On the Create & Edit tab of the Text & Video Tools ribbon, click More, and then click Send Media Clip to Sanction.

You can also right-click on the annotation to be sent, select Send To, and then click Sanction - New Media Clip.

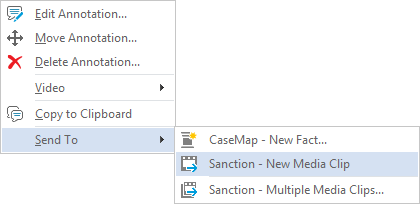

Send to Sanction - New Media Clip



ac_tip_icon

If adjustments have been made to the start and stop times of a video, those adjustments will be retained when the media clip(s) are sent to Sanction. See Editing videos for additional information.





hmtoggle_plus1To bulk send annotations as Sanction media clips
1.Open a case in Sanction® 3.5 or later.
2.In the Transcripts pane, select a transcript from the list that has both annotations and video.



ac_tip_icon

The video icon xm_transcript_video indicates a transcript with video.

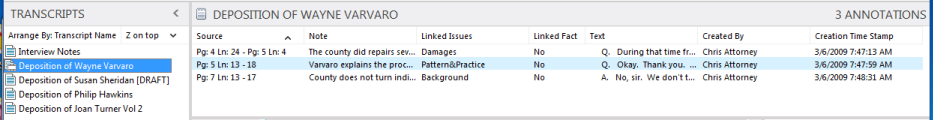

Transcript List

3.Select the annotations to be sent to Sanction to display the Text & Video Tools ribbon.
4.On the Options tab, click Send Multiple Media Clips.

You can also right-click on the annotations to be sent, click Send To, and then click Sanction - Multiple Media Clips.

5. In the Send Multiple Media Clips to Sanction dialog box, perform all applicable steps:

Send Multiple Clips to Sanction

a.In the Select Transcripts dialog box, click Transcripts Groups to list transcripts by groups, or click Individual Transcripts to list transcripts individually.

For this example, Individual Transcripts is selected.

b.In the Available Transcripts column, place a check mark beside the transcript(s) to be sent to Sanction.

Optional: Place a check mark in the Select all check box to simultaneously select all transcripts.

Select Transcripts

c.Click OK to display the Send Multiple Media Clips to Sanction dialog box.

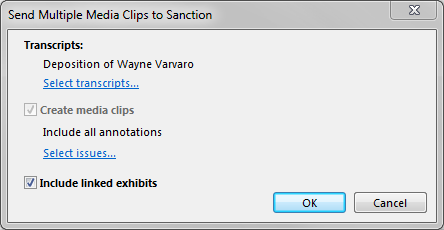

Send Multiple Media Clips to Sanction

a.In the Send Multiple Media Clips to Sanction dialog box, click Select issues to open the Select Issues dialog box.
b.In the Select Issues dialog box, select (place a check mark) beside the issue(s) associated with media clip(s) to be sent to Sanction.

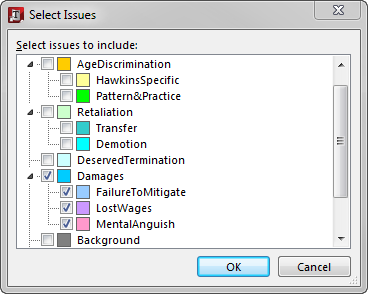

 Select Issues list

c.Click OK to display the information being sent to Sanction.

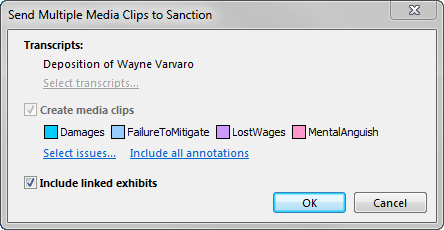

Send Transcript to Sanction dialog box



ac_note_icon

The issues selected here are recalled the next time the Send Multiple Media Clips to Sanction dialog box is opened, unless otherwise changed.



d.Optional: Click Include all annotations to deselect the issues selected in the step above and to return to sending all annotations to Sanction.
e.Click OK to continue.
