Overlapping existing redactions

The redaction tool overlaps existing redactions by selecting a portion of transcript text and applying a new redaction.

Overlapping existing redactions merges the new redaction to create a continuous redacted area.

1.Select the portion of text that overlaps a single existing redaction, right-click and then click Redact in TextMap.

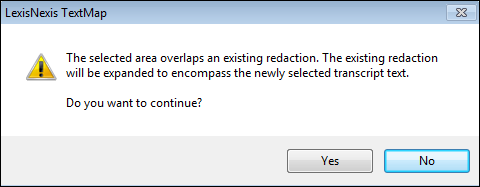

xm_redaction_overlap_single_zoom25

2.In the Edit Redaction dialog box, select the redaction reason(s) and then click OK.

The existing redaction is expanded to include the newly selected transcript text.

1.Select the portion of text that overlaps multiple redactions, right-click and then click Redact in TextMap.



ac_note_icon

Once multiple redactions have been merged, they will not retain any creation or update history.

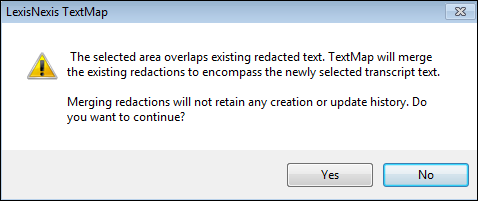

xm_redaction_overlap_multiple_zoom25

2.In the Edit Redaction dialog box, select the redaction reason(s) and then click OK.

The existing redactions are expanded to include the newly selected transcript text.
