Toolbar buttons

CaseMap uses ribbons instead of the Standard toolbar for its default display of the most commonly used buttons and functions. Click on a tab and place your mouse pointer over each button and/or menu item to view its name and a brief functional description.



ac_note_icon

You can use the Windows standard toolbar instead of the ribbon by going to the File Tab > Options > Accessibility and then select the 'Use standard Windows menu in place of ribbon' check box. This option allows screen readers to call out the menu items.



Standard toolbar

hmtoggle_plus1To show or hide buttons
1.Click the More Buttons cm_more_buttons icon in the upper left corner of the Quick Access Toolbar.

morebuttons_zoom60

2.Select or clear the check from buttons to add/remove them. All checked buttons display on the toolbar.

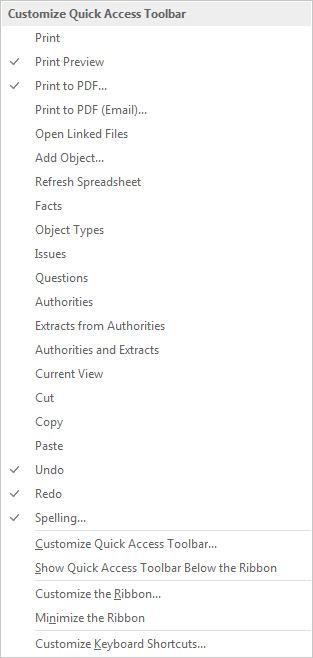

Toolbar button menu
hmtoggle_plus1Toolbar button descriptions

The following table provides a listing of toolbar buttons and descriptions.

CaseMap Toolbar Buttons

Button

Name

Description

cm_smartassist_icon

SmartAssist

Search for keywords in case content or in LexisNexis Research.

cm_new_button_zoom70



New Record



Add new facts, objects, issues, questions, and authorities for each respective spreadsheet.

cm_print_buttons_zoom60



Print buttons



CaseMap offers multiple print buttons: Quick Print, Print to PDF/PDF (Email), Batch Print (To Printer, To PDF, To TIFF), More (Print Preview and Page Setup), to include the Document Production wizard.

cm_document_production_icon_zoom70

Document Production

Use this button to trigger the Document Production wizard.

cm_delete_button_zoom70

Delete Record

Use the Delete Record button to permanently delete records from the case.

cm_refresh_table_button_zoom70

Refresh Spreadsheet

Use to refresh the spreadsheet view to display updated data.

cm_undo_redo_buttons_zoom70

Undo and Redo

Click the Undo and Redo buttons to retrieve deleted information in description fields before leaving the cell.

cm_cutcopypaste_buttons_zoom70



Cut, Copy, Paste



Use the Cut, Copy, and Paste buttons to remove and copy/paste text in spreadsheet records.

cm_font_buttons_zoom60



Format buttons



Use the Format buttons to adjust font color, size, height, and to underline words or characters. Format buttons are only active when text is selected in certain spreadsheets.

cm_record_detail_button_zoom70

Record Detail

Use the Record Detail button to access a detail dialog box for the selected record particular on the spreadsheet being viewed.

cm_addquestion_button_zoom70



Add Question



Use the Add Question button to access a Question Detail dialog box so you can add a question to the Questions spreadsheet while working in another spreadsheet.

cm_defineviews_button_zoom70

Define Views

Use the Define Views button to toggle between a spreadsheet's default view and other saved views, including a Favorite view.

cm_advancedsort_button_zoom70

Advanced Sort

Use the Advanced Sort button to open a dialog box where you can perform multi-level sorting of data on spreadsheets.

cm_rowheight_button_zoom70

Row Height

Use the Row Height button to adjust the height of spreadsheet records.

cm_casewide_button_zoom80

CaseWide

Use the CaseWide button to access a graph displaying a visual timeline of facts in your case. CaseWide is available only on the Facts spreadsheet.

cm_linkedauthority_button_zoom80

Linked Authority

Use the Linked Authority button to toggle between the Extracts from Authorities and the Authorities and Extracts spreadsheets. This button displays only when working in these two spreadsheets.

cm_issuelinking_button_zoom80



Issue Linking



Use the Issue Linking button to open the Issue Linking pane so you can link records to multiple issues at one time, add a new issue to the Issues spreadsheet, and access the Analysis Filter to sort issues. Click the drop down arrow to the right of the Analysis Filter heading Analysis Filter to display the Analysis Filter details.

cm_underlineobjects_button_zoom75



Underline Objects



Use the Underline Objects button to turn on/off whether objects are underlined in spreadsheets.

cm_showfullname_button_zoom75



Show Full Name



Use the Show Full Name button to turn on/off whether object short names or full names display in spreadsheets.

cm_research_button_zoom80



Research



Use the Research button to access a submenu that offers search options in our LexisNexis companion products, like www.lexis.com, CourtLink, and more. The Research button and submenu changes depending on the spreadsheet being viewed.

cm_review_linked_files_button_zoom70



Review Linked Files



Use the Review Linked Files button to open linked files in the Research spreadsheets, like Authorities and Extracts from Authorities. Linked files open in DocManager.
