Zoom and Page View Settings

You can adjust the page view in the exhibit viewer by either zooming in on an image, or by setting the layout of the page to one of several preset views.



hmtoggle_plus1To zoom in or out
1.Select the exhibit page you want to zoom in on.
2.Do one of the following:

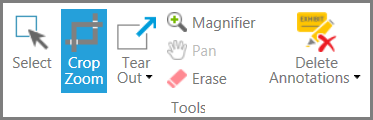

•On the IMAGE TOOLS tab, in the Tools group, click Crop Zoom or press Ctrl+M. Then select the area on the exhibit you want to zoom to. To return to the original view, double click anywhere within the zoomed region.

IMAGETOOLSToolsCropZoom

•On the bottom right of the exhibit viewer screen, move the slider to zoom in or out to zoom as needed.

ExhibitsViewerZoomSlider

If you zoom in, you might need to re-center the image by using the scroll bars of the exhibit viewer.
hmtoggle_plus1To set the view using presets
1.Select the Exhibits navigation bar.
2.Select the exhibit you want to adjust the view on.
3.On the bottom right of the exhibit viewer screen, select one of the preset views next to the slider.

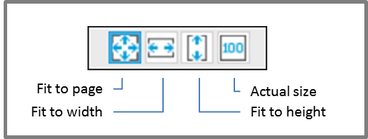

These are the preset view options:

exhibitPageViewPresets

Fit to page. The entire page view is scaled to the viewing window. .

Fit to width. The page view is scaled so that the entire width of the page is visible in the viewing window. This view can be helpful when you want to more easily read the text of a letter- or legal-sized document

Fit to height. The page view is scaled so that the entire page can be seen in the viewing window. For wider documents, this view might require that you scroll left and right to view page content located toward the left and right margin of the page.

Actual size. The page view is not scaled. If the exhibit is larger than the viewing window, you will need to use scroll bars to see any page content outside the viewing window.



related_topics_buttonRelated Topics
