Modifying Navigation pane display

You can modify the display of the Navigation pane to suit your viewing preferences: move the task pane buttons, resize the Navigation pane, and hide the Navigation pane.



hmtoggle_plus1To maximize the Case Shortcuts pane for better viewing

To change the height or width of the Navigation pane, drag the split bars to the left or right or up or down.

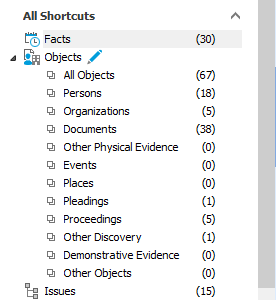

Navigation pane split bars

As you pull the bottom split bar down, the Navigation pane buttons change into icons on the lower bar.

Navigation pane icon bar

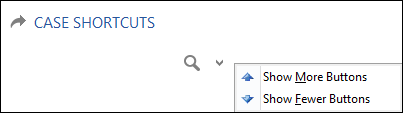

You can also, click the arrow on the lower bar and select Show More Buttons or Show Fewer Buttons to maximize the pane view.

Navigation pane show/hide buttons



hmtoggle_plus1To hide task panes for better viewing

To show/hide task panes or the Navigation pane, click the Expand/Collapse buttons. For example, if you prefer navigating your spreadsheets from the All Shortcuts task pane, you may want to hide the Favorites pane from view so you can see the full listing of individual object spreadsheets.

Navigation pane expand buttons



hmtoggle_plus1To hide the Navigation pane to maximize the spreadsheet view

To maximize a spreadsheet's view on-screen, click on the Collapse button to pin the Navigation pane to the left side of CaseMap. The Navigation pane can easily be expanded and locked on-screen when you need to use it more frequently.

Navigation pane expand button



hmtoggle_plus1To change the Navigation pane display

To change the Navigation pane display, click on the respective pane's button.

Navigation pane icon bars
