Registering the CaseMap Server

If you are using TextMap with CaseMap Server and did not register a server during TextMap installation, you will need to register a CaseMap Server in the client application in order for users to access SQL cases in TextMap.



hmtoggle_plus1To register a CaseMap Server
1.Launch TextMap.
2.On the Tools menu, click Options.
3.In the Options dialog box, click the CaseMap Servers tab.

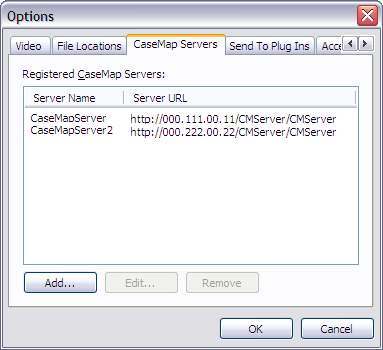

TextMap > Tools > Options > CaseMap Servers

4.Click the Add button.
5.In the New TextMap Server dialog box, type in the client server address in the Server Name field.

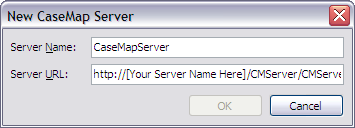

New CaseMap Server

6.In the Server URL field, type in the path to the server, then click OK.

For example: http://[Your Server Name Here]/CMServer/CMServerClient.svc.

7.Click OK when you are finished.

The server you registered now displays in the Registered CaseMap Servers box.

hmtoggle_plus1To edit a CaseMap Server in TextMap
1.Launch TextMap.
2.On the Tools menu, click Options.

TextMap > Tools > Options > CaseMap Servers

3.In the Options dialog box, click the CaseMap Servers tab.
4.In the Registered CaseMap Servers box, select the server you want to edit.
5.Click the Edit button.
6.In the Edit CaseMap Server dialog box, modify the server name or server URL, then click OK.

The changes now display in the Registered CaseMap Servers box.

7.Click OK to save your changes.
hmtoggle_plus1To remove a registered server in CaseMap
1.Launch TextMap.
2.On the Tools menu, click Options.
3.In the Options dialog box, click the CaseMap Servers tab.

TextMap > Tools > Options > CaseMap Servers

4.In the Registered CaseMap Servers box, select the server you want to remove.
5.Click the Remove button.

The selected server no longer displays in the Registered CaseMap Servers box.

6.Click OK to save your changes.
hmtoggle_plus1To disable the Connect to CaseMap Server dialog box

You have the option to disable the Connect to CaseMap Server dialog box when you launch TextMap. This feature is turned on by default.

1.On the Tools menu, click Options.
2.On the General tab, clear the Display Connect to CaseMap Server at start up check box.
3.Click OK.
