Linking related files

The Related File field is included on each spreadsheet and is only used in rare instances when it's deemed absolutely necessary to have additional files linked to a record.

You can link to various file types: Adobe® Acrobat, Microsoft® Word and Excel, audio, video, graphics, images, etc. You can link to files stored on your computer. However, other users cannot view these files unless they are stored in a network folder. If clients or remote staff need to view the files, you will need to send the files along with a replica copy of the case.



ac_tip_icon

We strongly recommend you use the Linked File field in object and research spreadsheets to link a source file to a case record. In the Questions spreadsheet, use the Answer field to link a file to a case record. The Linked File field is most commonly used to link to important sources files that you want included in searches and reports, and linked to other spreadsheets by use of the file's short name.



ac_caution_icon

Files added to this field through the Related Files dialog box have to be individually re-linked if the files are moved. Files linked to this field will not be included in search results or reports. Related files will not be linked to other spreadsheets.



When files are linked to a case record a paperclip icon displays to the far left of the record in the spreadsheet. Click on the paperclip icon to view the source file in its native application. You must have the native application installed on your computer to view the linked file.



hmtoggle_plus1To link to a related file
1.In the Case Shortcuts pane, click on the icon for the spreadsheet you want to use.
2.Click on the record you want to link to a file.
3.Insert the Related File field into the spreadsheet if it is hidden from view.
4.Click on the Ellipsis button in the Related Files field for this record.
5.In the Related Files box, click the Add button.

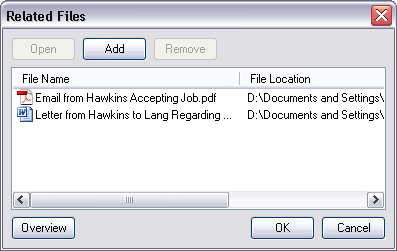

Related Files dialog box

6.In the Select file to add box, navigate to the folder where the file is stored, then click Open.

The file now displays in the Related Files list.

7.Click Add to attach additional files.
8.Click OK to attach the files to the case record.

The Related File field now displays the number of records you attached to the case record.

9.Click on the paperclip icon to the far left of the case record to view the file path and type of files.

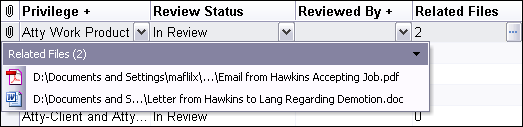

Viewing related files example

10.Click on a link to open the file in its native application.
